Layout: Yamaha RS 7000 (for performance) - MIDI Designer Q&A

Rating: SilverLayout: Yamaha RS 7000 (for performance)
by zweier

+1 vote
Rating: Silver
Silver
MIDI Target Manufacturer(s): Yamaha

My template for the Yamaha RS 7000 Groovebox. Designed with Midi Designer Pro 2.112. I use it in combination with an external sequencer (midibox).

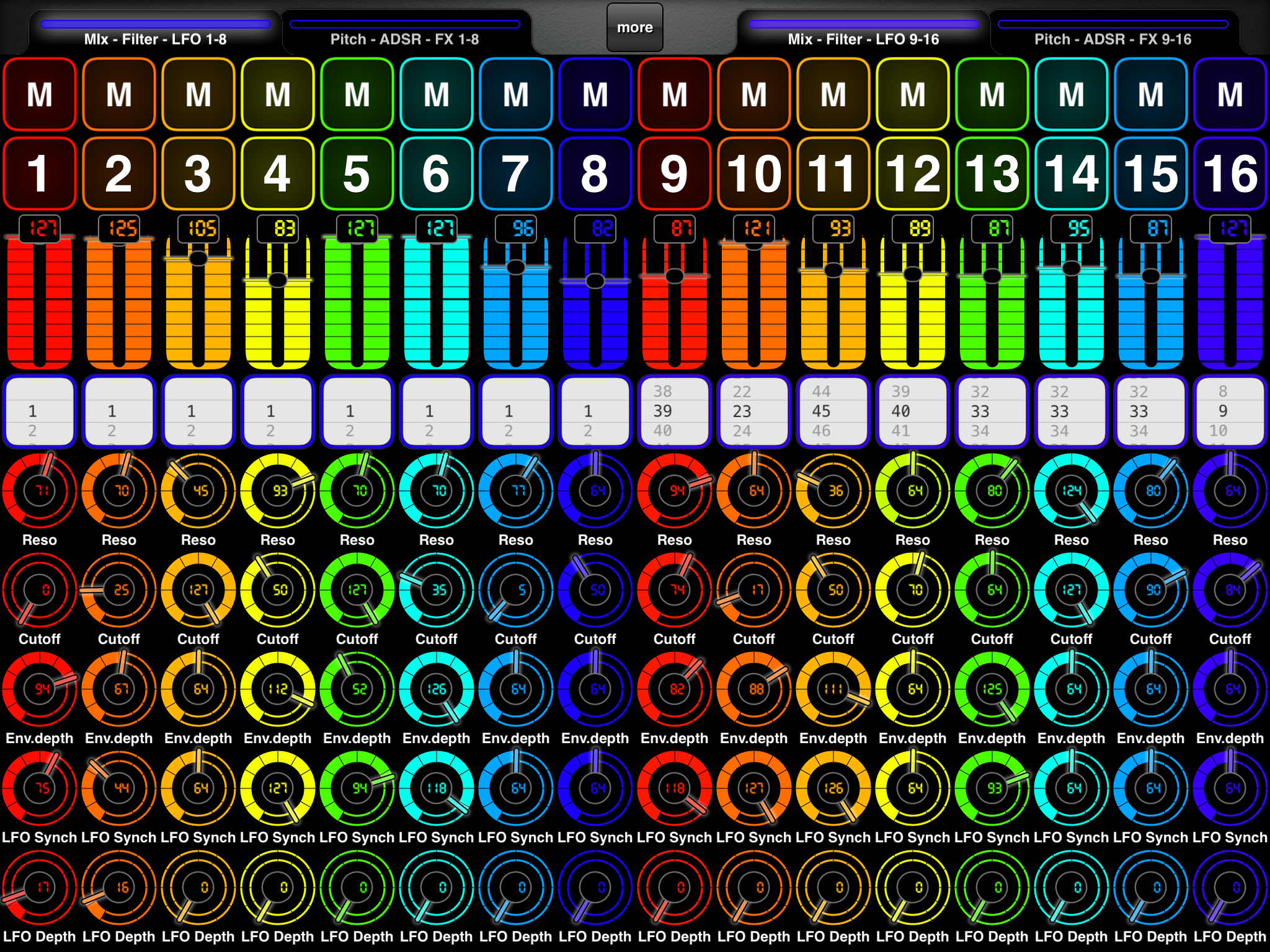

Page 1 (Mix - Filter - LFO):

1. row: Pressing the buttons mutes the channel by sending the audio to the OUT6 (AIEB2). This can be used even when the AIEB2 is not installed.

2. row: Number of channel. Pressing the buttons sends the audio back to the Main Outs.

3. row: Volume

4. row: Channel 1-8 = Picker for selecting the drumkit. See voice list for normal voices "drum kit" on page 292 of manual. I decided not to use names because of limited space. Channel 9-10 = "Synth Bass + Lead 1" (p. 293 manual). Channel 11-12 = "Synth Bass + Lead 2". Channel 13-14 = "Synth Material". Channel 15-16 = Band instrument

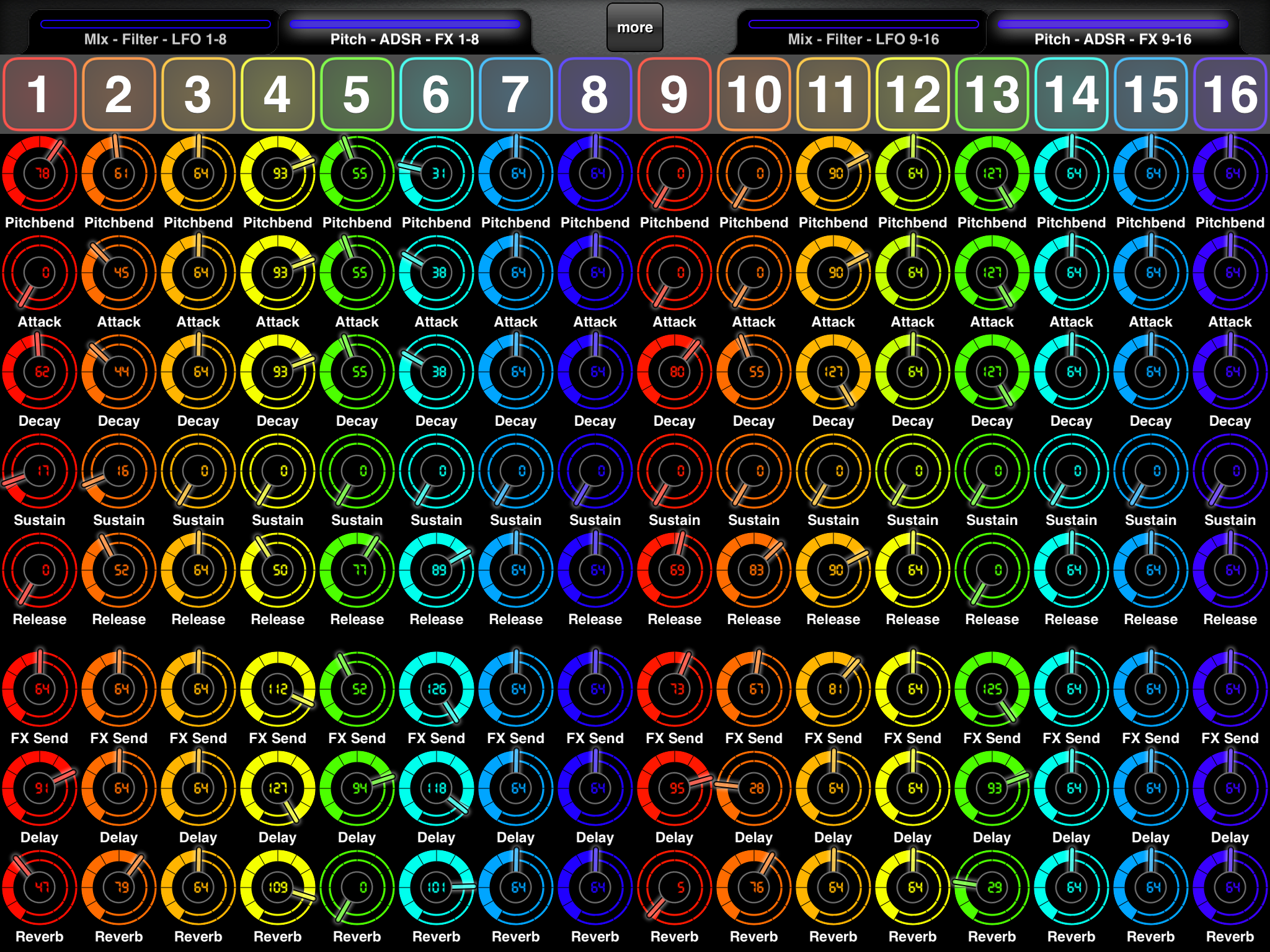

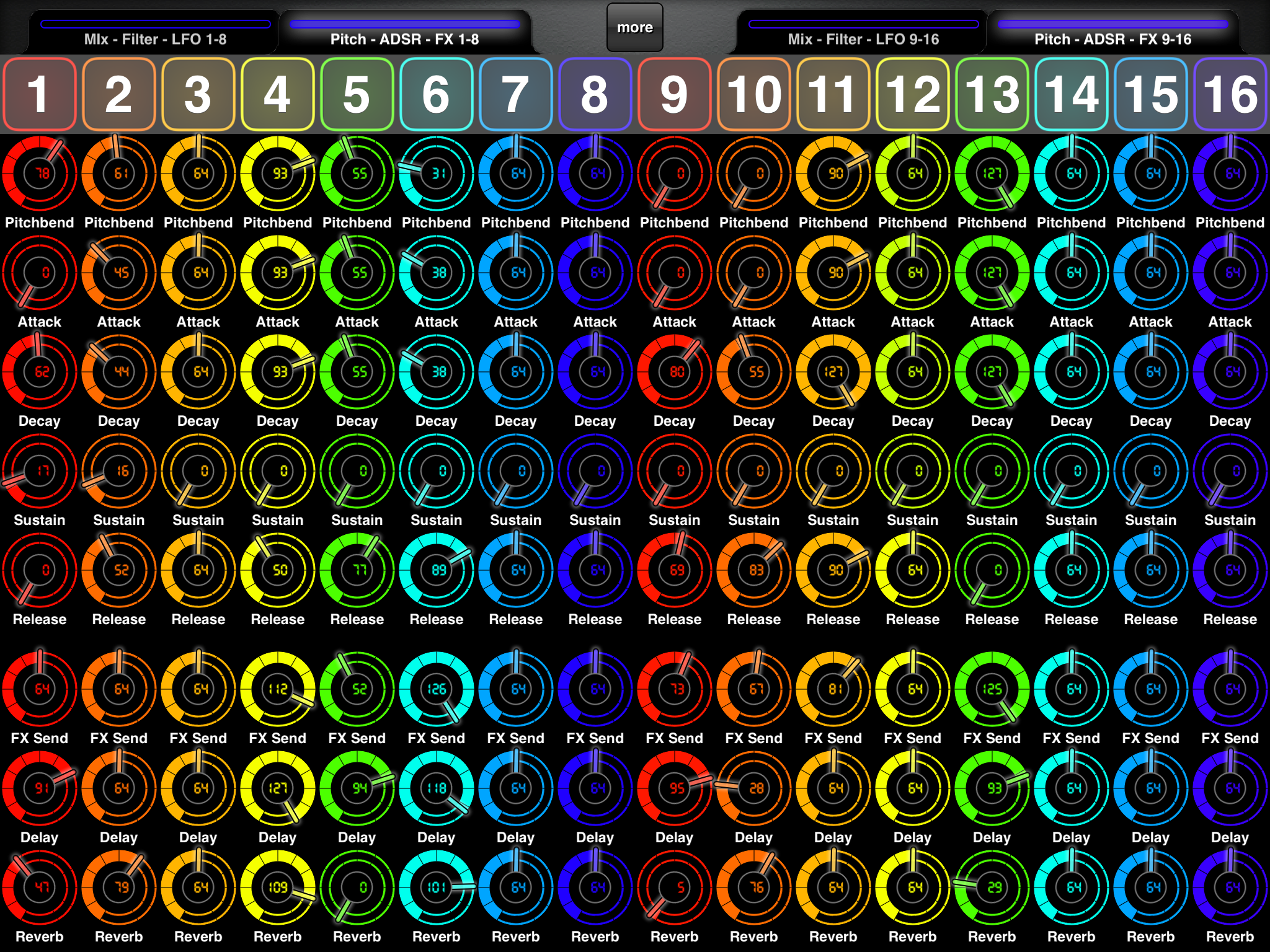

Page 2 (Pitch - ADSR - FX)

1. row: No function

Have fun!

Chris

Downloads: 715
Layout: Yamaha RS 7000 (for performance)
Downloads: 715
Images
Image 1
Image 1
Image 2
Image 2
in Community Shares by zweier (170 points)
wow, this is beautiful and awesome! Thanks for sharing!
by MIDI Designer Team (Dan)
