After doing the MKII layout, I figured I should post a layout for the original Mood pedal.

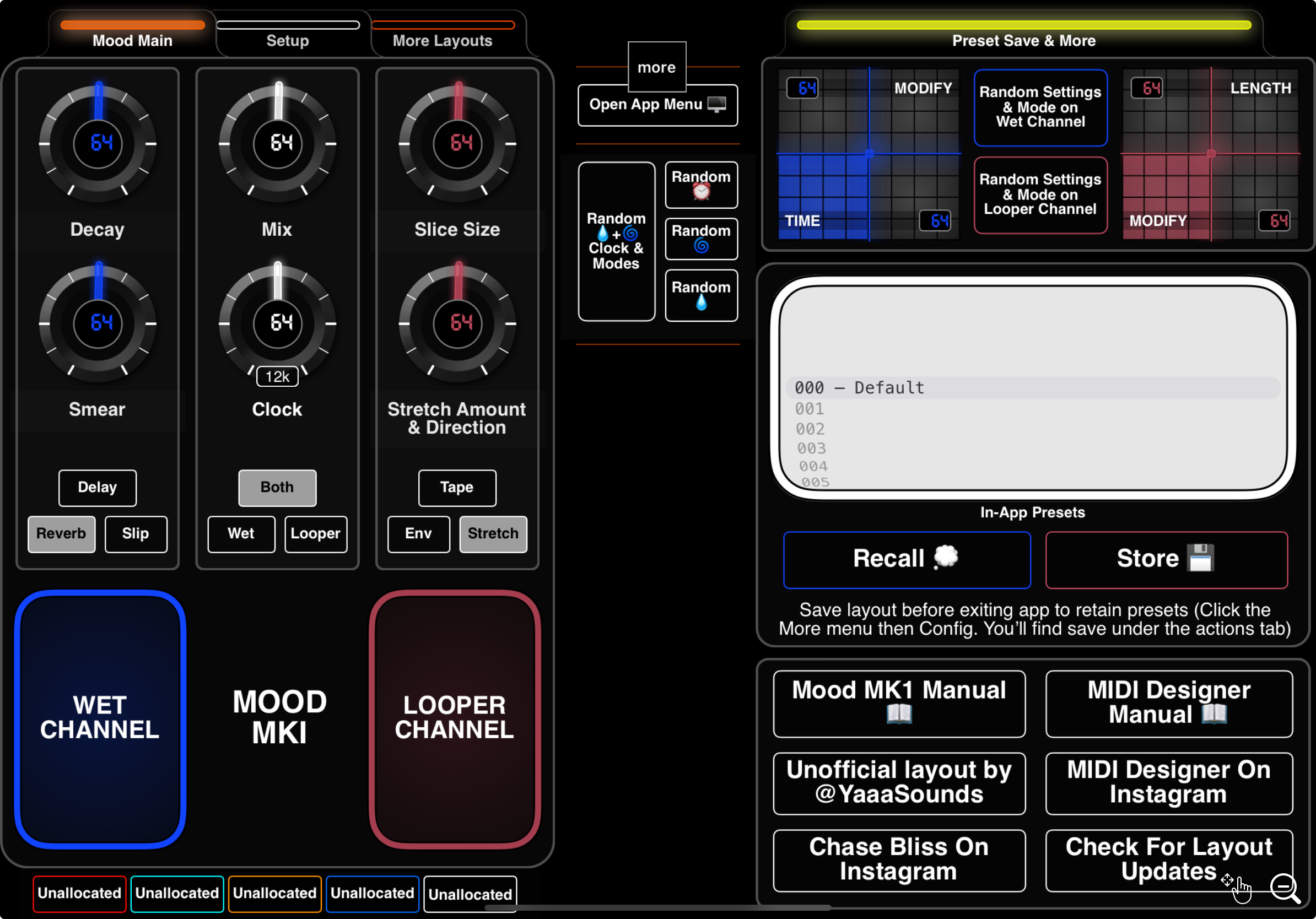

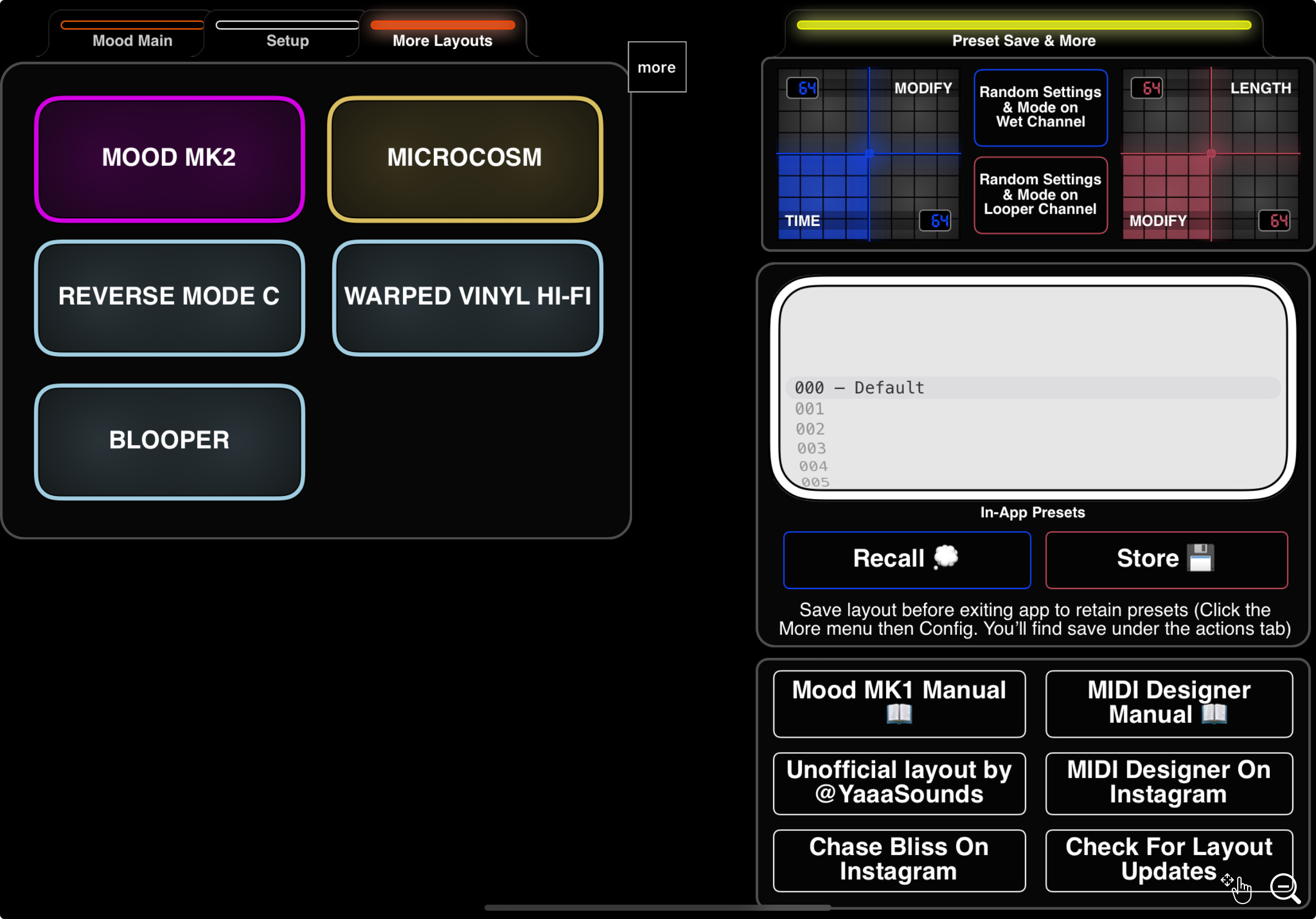

Features:
- In-App presets
- Ramdomise buttons
- XY pads – One for each channel
- Switching modes on each channel will change the dial labels to show exactly what they do
---
How to use: 1) Install Midi Designer from the Apple App store 2) Download the layout file below and load it into the app 3) Open app menu -> config -> save layout. Optional - but it will save you a bit of time if you are switching layouts in future
Connecting to the pedals:
- Wired: Plug your iPad/iPhone into a USB enabled midi device that’s hooked up to a Chase Bliss compatible Midi box. I have tested this with a HX Stomp.
- Bluetooth: I highly recommend the CME Widi jack. Use a midi box that's switchable to work with Chase Bliss pedals (Ring active). Because it's switchable you can then use any stereo TRS cable. I am using the Disaster Area Midi Box 4. Do not try using a Widi jack plugged directly into the Mood pedal's midi input - it won't work because the TRS cable CME use is wired up the standard way.

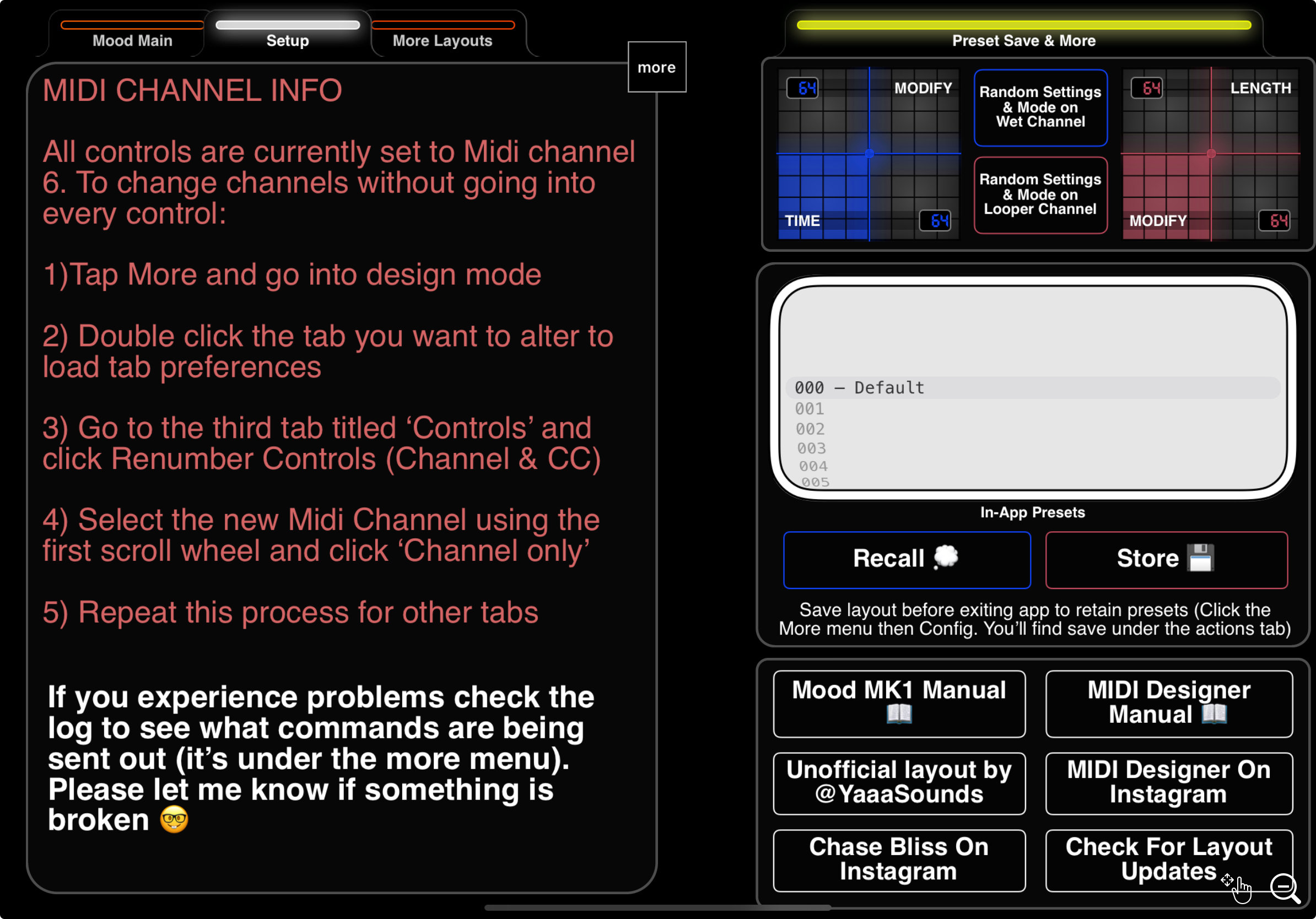

Midi Channel: Set to 6. You can easily change these by:
- Tapping the More menu (top centre) then design mode
- Double tap a tab and go to the controls pane.
- Click Renumber controls (Channel & CC), and pick the channel you want to change everything on the tab to. Make sure Channel only is selected,
- Tap apply.
- Repeat the process for each tab with controls on them (it's quick and should take 1-2min to do). Save your layout so settings are retained (under More/Config/Actions/Save Layout As)
----
Saving in-app presets: Use the ticker to pick the slot -> Hit Save -> Label your preset
IMPORTANT:
- If you are adding in-app presets, make sure you save your layout at the end of a session. This will write them to the layout file. Open the App Menu -> Tap Config -> Then tap Save Layout in the Actions Tab
- If you happen to open design mode you'll notice there's a lot of panels with controls that are hidden in play mode ( the yellow boxes). Don't delete them - they are super or sub controls, and necessary for mapping and functionality to work. Feel free to tweak other controls though - e.g if you want to change a colour/size, move them elsewhere or switch out a dial of a fader etc.
A tip for those wishing to edit things: When you load this layout in it will be locked from making changes. But if you go into design mode, then tap on the padlock you can unlock elements to make changes. The app refers to 'Others' for controls (e.g buttons & sliders).
----
If you spot anything that has not been mapped correctly, let me know and I'll do my best solve them. If you enjoy using this layout I'd love to know in the comments or via Instagram.
----
